Межсетевой экран FortiGate 800D

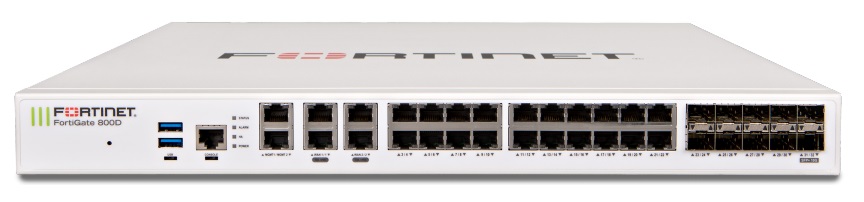

FortiGate 800D

Interfaces and Modules

Hardware Accelerated 10 GE SFP+ Slots

2

Hardware Accelerated GE SFP Slots

8

Hardware Accelerated GE RJ45 Ports

20

Accelerated GE RJ45 Bypass Interfaces

4

GE RJ45 Management / HA Ports

2

USB Ports (Client / Server)

1 / 2

Console Port

1

Included Transceivers

2x SFP (SX 1 GE)

System Performance and Capacity

IPv6 Firewall Throughput (1518 / 512 / 86 byte, UDP)

36 / 36 / 22 Gbps

Firewall Latency (64 byte, UDP)

3 μs

Firewall Throughput (Packet per Second)

3 Mpps

New Sessions/Second (TCP)

280,000

Firewall Policies

10,000

IPsec VPN Throughput (512 byte)

20 Gbps

Gateway-to-Gateway IPsec VPN Tunnels

2,000

Client-to-Gateway IPsec VPN Tunnels

50,000

SSL-VPN Throughput

2.2 Gbps

Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode)

5,000

SSL Inspection Throughput (IPS, avg. HTTPS)

3.9 Gbps

Application Control Throughput (HTTP 64K)

9 Gbps

Maximum Number of FortiAPs (Total / Tunnel)

1024 / 512

Form Factor (supports EIA / non-EIA standards)

Rack Mount, 1 RU
